GAL Chicago area office open!


On August 23rd the GAL Chicagoland office had its grand opening party.  GAL opened an office in Elk Grove Village, IL which is about 10 minutes from our location.  I walked in to see all the big swingers in attendance from GAL.  I’ve been fortunate to have the opportunity to meet a lot of these people through my term on NAEC Board of Directors, it was great to see old friends and meet the people I had not had the opportunity to meet yet that are new additional to the team.

GAL currently owns; GAL, Hollister Whitney, Courion Freight Doors, BoreMax and Elevator Controls.

[GAL's new Ehydro controller]

[GAL's traction controller]

[GAL's linear opeartor]

[GAL's new geared & gearless machine]

[Courion's freight door set up]

When GAL was acquired by Golden Gate Capital one of their market research items noted was “when I call GAL if I get someone on the phone the customer service is great! If I don’t get someone on the phone then I go into a black hole”.  The opening of the local offices in Chicago, Miami, Los Angeles and New York solves this issue for these markets.  We are really stoked about the new office that will be warehousing typical GAL operators, governors, buffers, arms, keys, rollers, etc.

Value added items – in addition to warehousing they will be having in house training and providing technical support, which is huge!  The local office has already assisted in a few items for us.  One of the other big items we are excited to see is the fabrication of power units from their recently acquired BoreMax which was historically a West Coast supplier which did not have a presence in our region.

[Boremax power unit]

For a guy who grew up in the mid 1990’s working in the shop taking deliveries of GAL, delivering GAL parts, taking a part old operators and later engineering and ordering from them this is a very interesting development to have them open an office in our back yard.  GAL/Hollister Whitney has been an institution in our industry for much longer than I have been around so their new evolution is exciting.

As always feel free to contact us at www.colleyelevator.com, email Craigz@colleyelevator.com or call 630-766-7230.


Monday, August 20, 2018

Traction freight elevator modernization



This traction freight elevator modernization project took an entire team to complete; from the  building owner design team, general contractor, electrician, fire recall company, security company, sales people, engineering, 4 different major equipment suppliers, field support, IUEC elevator constructors.  2 years in the making the project is finally completed.   Many thanks to everyone involved especially the installers!

The background on this elevator is that it was a Montgomery Elevator installed in 1940’s sometime and it had manual door operation with bi parting freight doors on the front and swing doors on the dock.  The specification called for making it an automatic freight car with new everything except the rails.

Controller – MCE
Machine, sling, safeties, HW equipment – Hollister Whitney
Cab & doors – EMS
Fixtures – Innovation

Machine – Holliser Whitney – A geared application was specified on this project, it was identified that not only would it be a tight fit to get this machine in, it also needed additional structural supports as the small foot print of the Montgomery machine had different reaction points and requirements.  Adding the weight of the new sling, platform and automatic gates required more steel to be installed in the elevator room.

[Old small foot print Montgomery machine]

[Old small foot print Montgomery machine]

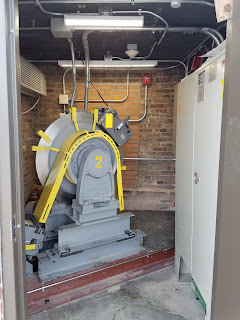

[New gearless HWEC machine]

Controller – MCE was chosen to do this project because they used one less electrical device/box for incoming power.  The machine room is very small so space was at a premium.  Some of the other manufacturers qualified for this specification had and additional device/box.

[New MCE & EMS controllers]

Hoistway doors – EMS – We had some significant challenges on this project as the hoistway was fire block and there wasn’t a lot of material to work with to attach the new doors to.  The team working on the project did a beautiful job working with the existing conditions to make it work.

[Old swing doors on dock side - Interior]


[Old swing doors on dock side - Exterior]

[New dock side bi parting automatic freight doors]


[Typical manual freight doors at each landing]


[New automatic freight doors at each landing]

Cab – EMS – New automatic gates replaced the manual wood gates.

[Old cab with manual wood gates]

[New cab with automatic gates]

Fixtures – Innovation – New fixtures installed.  When pictures where taken we were still doing a final clean down of finger prints.

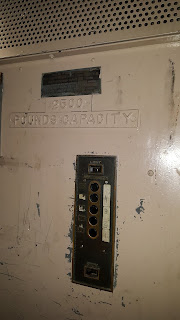

[Old Montgomery fixtures]
